Quick-Reference Repair Parts for
Graco Xtreme 250cc (1045)

Replaces OEM P/N	Bedford P/N	Description / Reference / Notes
Repair Kits
Displacement Pump (Fluid Section)
Used in Series "A" - identified by smooth surface on upper filter endcap
244-853	- - -	Replaced by 24F-965
244-903	- - -	Replaced by 24F-966
246-836	- - -	Replaced by 262-794
Used in Series "A", "B", or "C"

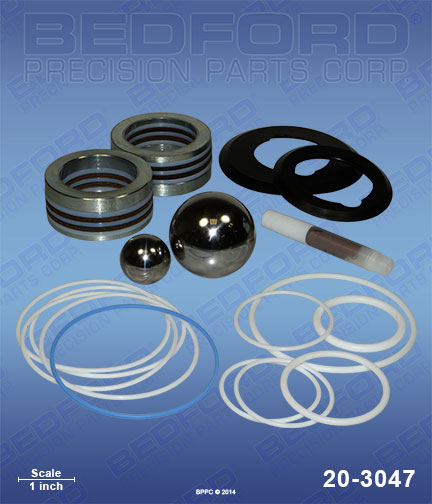

24F-965	20-3047	Repair Kit with Xtreme Seals & Leather V-Packings
24F-966	20-3048	Repair Kit with Tuff-Stack Seals
25D-237	20-3427	Repair Kit with Leather & Polyethylene Packings
25D-247	20-3430	Repair Kit with Teflon Packings
25D-261	20-3433	Repair Kit with Teflon & Polyethylene Packings
262-794	20-3051	Repair Kit with X-Tuff Seals
Piston Rods
24B-824	57-3522	Piston Rod
Cylinders & Sleeves
197-318	- - -	Cylinder
Carbide Ball Seats, Check Valves & Check Balls
Upper Ball Seat (Outlet Seat)
24B-829	- - -	Piston Valve Assembly
244-898(1)	9-2948	Ball, piston (order per ball)
Lower Ball Seat (Intake Seat)
197-344	- - -	Seat, inlet valve
253-030(1)	9-2952	Ball, intake (order per ball)
Miscellaneous Fluid Section Repair Parts
15K-031	- - -	Packing Nut, upper
197-304	- - -	Housing, inlet
197-308	- - -	Ball Guide, inlet
197-328	- - -	Cartridge, packing nut, lower
197-335	- - -	Housing, pump (with filter)
197-337	- - -	Housing, pump (without filter)
244-856	- - -	Shim, intake (9-pack)
244-891	55-2966	Teflon O-Rings, lower packing nut (10-pack)
244-893	55-2645	O-Ring, top of cylinder (10-pack)
244-894	55-2643	Teflon O-Rings, bottom of cylinder & intake housing (10-pack)
245-229	- - -	Tuff-Stack Seal, upper & lower (10-pack)
245-230(1)	1-3044	Leather V-Packing (order per packing)
245-231(1)	49-3045	Polyethylene V-Packing, Xtreme Seal, upper & lower (order per packing)
245-232(1)	18-3046	Male Gland, upper & lower (order per gland)
245-233(1)	- - -	Female Gland, upper & lower (order per gland)
246-530(1)	18-3041	Female Gland, upper & lower (order per gland)
247-395(1)	17-2950	Plug, throat seal, 2-1/2" diameter (order per plug)
25D-137	20-3428	Packing Set, throat L/PE
25D-144	20-3429	Packing Set, piston L/PE
25D-154	20-3431	Packing Set, throat Teflon
25D-164	20-3432	Packing Set, piston Tellon
25D-178	20-3434	Packing Set, throat T/PE
25D-192	20-3435	Packing Set, piston T/PE
Dump Valves, Prime/Spray Valves, Pressure Release Valves, and Components
Complete Assembly
245-143	29-3150	Valve Assembly, 3/8" NPT(m) Inlet x 1/8" NPT(f) Outlet
Components
245-145	20-3014	Repair Kit - includes Carbide Ball, Ring, Teflon O-Ring, Seat & Gasket
Inlet Filters, Suction Hoses/Tubes, Drain Hoses, and Components
116-750	- - -	Return hose, nylon
116-746	- - -	Fitting, barbed, return hose
Outlet Filter Assembly, Filter Elements & Components
Used in Series "A" - identified by smooth surface on upper filter endcap
15F-859	- - -	Cap, upper
197-339	- - -	Cap, lower
24B-732	55-2965	O-Ring, solvent resistant, upper & lower caps (10-pack)
24B-733	55-2931	O-Ring, solvent resistant, lower cap (10-pack)
244-895	55-2536	Optional Teflon O-Ring, upper cap (10-pack)
244-896	55-2537	Optional Teflon O-Ring, upper & lower cap (10-pack)
Used in Series "B" - identified by recessed surface on upper filter endcap
16F-268	- - -	Cap, lower
16F-269	- - -	Cap, upper
244-895	55-2536	Teflon O-Ring, lower cap (10-pack)
262-483	55-3005	Teflon O-Ring, upper cap (10-pack)
262-484	55-3008	Teflon O-Ring, lower cap (10-pack)
Used in Series "C" - identified by recess plus dot on upper filter endcap
16M-461	- - -	Cap, outlet filter, top
16M-462	- - -	Cap, outlet filter, lower
244-895	55-2536	Teflon O-Ring, lower cap (10-pack)
262-483	55-3005	Teflon O-Ring, upper cap (10-pack)
262-484	55-3008	Teflon O-Ring, lower cap (10-pack)
Used in Series "A", "B", or "C"
167-024	14-184	Outlet Filter Element, 30 mesh, long, stainless steel
167-025	14-185	Outlet Filter Element, 60 mesh, long, stainless steel
167-026	14-186	Outlet Filter Element, 100 mesh, long, stainless steel
167-027	14-187	Outlet Filter Element, 200 mesh, (long, stainless steel
171-939	44-1305	Support, aluminum
171-941	23-1563	Spring, compression, stainless steel
186-075	- - -	Support, plastic (see 171-939 for aluminum support)
224-458	55-2459	Outlet Filter Element, 30 Mesh, long, stainless steel (2-pack)
224-459	55-2462	Outlet Filter Element, 60 Mesh, long, stainless steel (2-pack)
224-468	55-2465	Outlet Filter Element, 100 Mesh, long, stainless steel (2-pack)
224-469	55-2468	Outlet Filter Element, 200 Mesh, long, stainless steel (2-pack)
238-436	55-2461	Outlet Filter Element, 30 Mesh, long, stainless steel (25-pack)
238-438	55-2464	Outlet Filter Element, 60 Mesh, long, stainless steel (25-pack)
238-440	55-2467	Outlet Filter Element, 100 Mesh, long, stainless steel (25-pack)
238-442	55-2470	Outlet Filter Element, 200 Mesh, long, stainless steel (25-pack)
Miscellaneous Parts & Accessories
245-191	- - -	Inlet Ball Spring Kit
Graco Instruction Manuals
311-762 L	Xtreme Lowers
Click Pictures to Enlarge = = = = = = = = = = = = = = = =
Before ordering any repair parts or attempting any maintenance, carefully read all instructions and warnings and verify part numbers required as specified in the OEM manuals that came with your particular unit. This reference was generated on 01/02/2022.  Part numbers on this reference were last modified on 03/04/2021. Copyright © 2022 by Bedford Precision Parts LLC
