Bedford Replacement Spray Repair Parts - Dealer Downloads

Bedford Precision Replacement Spray Repair Parts - Product References

Bedford Precision Replacement Spray Repair Parts

Quick-Reference Repair Parts for
Graco Outlet Filter Assemblies

Replaces
OEM P/N

Bedford
P/N

Description / Reference / Notes


3000 PSI, Short Filter, Aluminum Bowl

Complete Assemblies

235-677

- - -

Fluid Outlet Filter (short), standard outlet, complete assembly

239-447

- - -

Fluid Outlet Filter (short), reverse outlet, complete assembly

239-759

- - -

Fluid Outlet Filter (short), reverse outlet, complete assembly

Components

For All Models:

100-721

12-1482Bedford Precision 12-1482 Replaces Graco 100-721 / 100721

Plug, 1/4" NPT, socket hex head

104-361

15-432Bedford Precision 15-432 Replaces Graco 104-361 / 104361

Teflon O-Ring, fluid outlet filter

162-453

12-219Bedford Precision 12-219 Replaces Graco 162-453 / 162453

Nipple, 1/4" NPS x 1/4" NPT

167-052

14-192Bedford Precision 14-192 Replaces Graco 167-052 / 167052

Outlet Filter Element, 30 Mesh, short, stainless steel

167-053

14-193Bedford Precision 14-193 Replaces Graco 167-053 / 167053

Outlet Filter Element, 60 Mesh, short, stainless steel

167-054

14-194Bedford Precision 14-194 Replaces Graco 167-054 / 167054

Outlet Filter Element, 100 Mesh, short, stainless steel

167-055

14-195Bedford Precision 14-195 Replaces Graco 167-055 / 167055

Outlet Filter Element, 200 Mesh, short, stainless steel

171-941

23-1563

Spring, compression, stainless steel

188-418

- - -

Filter Bowl, aluminum, short

188-420

- - -

Support, fluid outlet filter, polyethylene

For Model: 235-677

156-832

- - -

Swivel Adapter, 1/4" NPT(m) x 1/4" NPS(f)

188-419

- - -

Head, fluid outlet filter, standard outlet

For Model: 239-447

156-832

- - -

Swivel Adapter, 1/4" NPT(m) x 1/4" NPS(f)

192-217

- - -

Head, fluid outlet filter, reversed outlet

For Model: 239-759

156-971

12-228Bedford Precision 12-228 Replaces Graco 156-971 / 156971

Nipple, 1/4" NPT(mbe)

192-217

- - -

Head, fluid outlet filter, reversed outlet

3000 PSI, Long Filter, Aluminum Bowl

Complete Assemblies

214-570

14-1566Bedford Precision 14-1566 Replaces Graco 214-570 / 214570

Fluid Outlet Filter (long), standard outlet, complete assembly

239-425

- - -

Fluid Outlet Filter (long), reverse outlet, complete assembly

239-758

- - -

Fluid Outlet Filter (long), reverse outlet, complete assembly

240-038

- - -

Fluid Outlet Filter Assembly, Long, 3000 PSI, plated steel

240-711

- - -

Fluid Outlet Filter Assembly, Long, 3000 PSI, plated steel

Components

For All Models:

100-040

12-1483Bedford Precision 12-1483 Replaces Graco 100-040 / 100040

Plug, 3/8" NPT

100-509

12-1481Bedford Precision 12-1481 Replaces Graco 100-509 / 100509

Plug, 1/4" NPT, square head

104-361

15-432Bedford Precision 15-432 Replaces Graco 104-361 / 104361

Teflon O-Ring, fluid outlet filter

162-453

12-219Bedford Precision 12-219 Replaces Graco 162-453 / 162453

Nipple, 1/4" NPS x 1/4" NPT

167-024

14-184Bedford Precision 14-184 Replaces Graco 167-024 / 167024

Outlet Filter Element, 30 mesh, long, stainless steel

167-025

14-185Bedford Precision 14-185 Replaces Graco 167-025 / 167025

Outlet Filter Element, 60 mesh, long, stainless steel

167-026

14-186Bedford Precision 14-186 Replaces Graco 167-026 / 167026

Outlet Filter Element, 100 mesh, long, stainless steel

167-027

14-187Bedford Precision 14-187 Replaces Graco 167-027 / 167027

Outlet Filter Element, 200 mesh, (long, stainless steel

171-939

44-1305Bedford Precision 44-1305 Replaces Graco 171-939 / 171939

Support, aluminum

171-941

23-1563

Spring, compression, stainless steel

186-075

- - -

Support, plastic (see 171-939 for aluminum support)

For Model: 214-570:

171-942

12-1564

Head, fluid outlet filter, standard outlet, carbon steel

172-831

44-1565

Bowl, aluminum

For Model: 239-425

188-149

- - -

Bowl, aluminum

192-217

- - -

Head, fluid outlet filter, reversed outlet

193-715

- - -

Swivel Adapter, 1/4" NPT(m) x 1/4" NPS(f)

For Model: 239-758

156-971

12-228Bedford Precision 12-228 Replaces Graco 156-971 / 156971

Nipple, 1/4" NPT(mbe)

188-149

- - -

Bowl, aluminum

192-217

- - -

Head, fluid outlet filter, reversed outlet

For Model 240-038

192-217

- - -

Head, fluid outlet filter, reversed outlet

192-706

- - -

Bowl, fluid outlet filter, long, zinc plated steel

193-715

- - -

Swivel Adapter, 1/4" NPT(m) x 1/4" NPS(f)

For Model 240-711

192-217

- - -

Head, fluid outlet filter, reversed outlet

192-706

- - -

Bowl, fluid outlet filter, long, zinc plated steel

193-715

- - -

Swivel Adapter, 1/4" NPT(m) x 1/4" NPS(f)

5000 PSI, Long Filter, Steel Bowl, Exposed Mounting

Complete Assemblies

214-625

- - -

Fluid Outlet Filter, Long, 5000 PSI, Exposed Mounting

Components

104-804

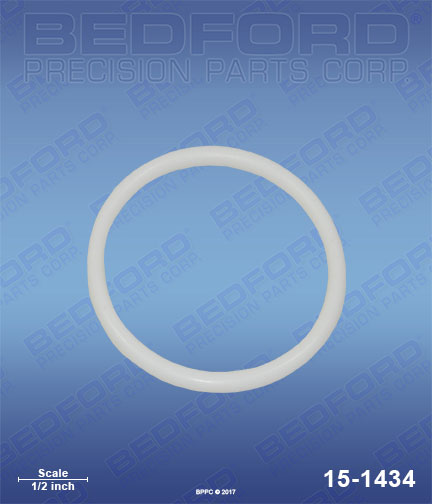

15-1434Bedford Precision 15-1434 Replaces Graco 104-804 / 104804

Teflon O-Ring

167-024

14-184Bedford Precision 14-184 Replaces Graco 167-024 / 167024

Outlet Filter Element, 30 mesh, long, stainless steel

167-025

14-185Bedford Precision 14-185 Replaces Graco 167-025 / 167025

Outlet Filter Element, 60 mesh, long, stainless steel

167-026

14-186Bedford Precision 14-186 Replaces Graco 167-026 / 167026

Outlet Filter Element, 100 mesh, long, stainless steel

167-027

14-187Bedford Precision 14-187 Replaces Graco 167-027 / 167027

Outlet Filter Element, 200 mesh, (long, stainless steel

171-939

44-1305Bedford Precision 44-1305 Replaces Graco 171-939 / 171939

Support, aluminum

171-941

23-1563

Spring, compression, stainless steel

210-658

29-1441Bedford Precision 29-1441 Replaces Graco 210-658 / 210658

5000 PSI Ball Valve - 3/8" NPT(mbe) Viton Packed

5000 PSI, Long Filter, Steel Bowl

Complete Assemblies

218-029

- - -

Fluid Outlet Filter (long), standard outlet, complete assembly

Components

100-509

12-1481Bedford Precision 12-1481 Replaces Graco 100-509 / 100509

Plug, 1/4" NPT, square head

104-361

15-432Bedford Precision 15-432 Replaces Graco 104-361 / 104361

Teflon O-Ring, fluid outlet filter

157-350

12-229Bedford Precision 12-229 Replaces Titan 157-350

Nipple, 38" NPT x 1/4" NPT

162-453

12-219Bedford Precision 12-219 Replaces Graco 162-453 / 162453

Nipple, 1/4" NPS x 1/4" NPT

167-024

14-184Bedford Precision 14-184 Replaces Graco 167-024 / 167024

Outlet Filter Element, 30 mesh, long, stainless steel

167-025

14-185Bedford Precision 14-185 Replaces Graco 167-025 / 167025

Outlet Filter Element, 60 mesh, long, stainless steel

167-026

14-186Bedford Precision 14-186 Replaces Graco 167-026 / 167026

Outlet Filter Element, 100 mesh, long, stainless steel

167-027

14-187Bedford Precision 14-187 Replaces Graco 167-027 / 167027

Outlet Filter Element, 200 mesh, (long, stainless steel

171-939

44-1305Bedford Precision 44-1305 Replaces Graco 171-939 / 171939

Support, aluminum

171-941

23-1563

Spring, compression, stainless steel

171-942

12-1564

Head, fluid outlet filter, standard outlet, carbon steel

179-773

- - -

Filter Bowl, carbon steel

Graco Instruction Manuals

307-273

Fluid Outlet Filters

307-296

High Pressure Surge Tanks & Fluid Filters


Click Pictures to Enlarge
= = = = = = = = = = = = = = = =

Bedford 12-1482 replaces 100-721 / Graco 100721 Plug, 1/4" NPT, socket hex head for Graco Outlet Filter Assemblies Bedford 15-432 replaces 104-361 / Graco 104361 Teflon O-Ring, fluid outlet filter for Graco Outlet Filter Assemblies Bedford 12-219 replaces 162-453 / Graco 162453 Nipple, 1/4" NPS x 1/4" NPT for Graco Outlet Filter Assemblies Bedford 14-192 replaces 167-052 / Graco 167052 Outlet Filter Element, 30 Mesh, short, stainless steel for Graco Outlet Filter Assemblies Bedford 14-193 replaces 167-053 / Graco 167053 Outlet Filter Element, 60 Mesh, short, stainless steel for Graco Outlet Filter Assemblies Bedford 14-194 replaces 167-054 / Graco 167054 Outlet Filter Element, 100 Mesh, short, stainless steel for Graco Outlet Filter Assemblies Bedford 14-195 replaces 167-055 / Graco 167055 Outlet Filter Element, 200 Mesh, short, stainless steel for Graco Outlet Filter Assemblies Bedford 12-228 replaces 156-971 / Graco 156971 Nipple, 1/4" NPT(mbe) for Graco Outlet Filter Assemblies Bedford 14-1566 replaces 214-570 / Graco 214570 Fluid Outlet Filter (long), standard outlet, complete assembly for Graco Outlet Filter Assemblies Bedford 12-1483 replaces 100-040 / Graco 100040 Plug, 3/8" NPT for Graco Outlet Filter Assemblies Bedford 12-1481 replaces 100-509 / Graco 100509 Plug, 1/4" NPT, square head for Graco Outlet Filter Assemblies Bedford 14-184 replaces 167-024 / Graco 167024 Outlet Filter Element, 30 mesh, long, stainless steel for Graco Outlet Filter Assemblies Bedford 14-185 replaces 167-025 / Graco 167025 Outlet Filter Element, 60 mesh, long, stainless steel for Graco Outlet Filter Assemblies Bedford 14-186 replaces 167-026 / Graco 167026 Outlet Filter Element, 100 mesh, long, stainless steel for Graco Outlet Filter Assemblies Bedford 14-187 replaces 167-027 / Graco 167027 Outlet Filter Element, 200 mesh, (long, stainless steel for Graco Outlet Filter Assemblies Bedford 44-1305 replaces 171-939 / Graco 171939 Support, aluminum for Graco Outlet Filter Assemblies Bedford 15-1434 replaces 104-804 / Graco 104804 Teflon O-Ring for Graco Outlet Filter Assemblies Bedford 29-1441 replaces 210-658 / Graco 210658 5000 PSI Ball Valve - 3/8" NPT(mbe) Viton Packed for Graco Outlet Filter Assemblies Bedford 12-229 replaces 157-350 / Titan 157350 Nipple, 38" NPT x 1/4" NPT for Graco Outlet Filter Assemblies




Before ordering any repair parts or attempting any maintenance, carefully read all instructions and warnings
and verify part numbers required as specified in the OEM manuals that came with your particular unit.

This reference was generated on 01/02/2022.  Part numbers on this reference were last modified on 10/23/2009.
