Bedford Precision Replacement Spray Repair Parts

Quick-Reference Repair Parts for
Graco Contractor FTx-II Spray Gun

Replaces
OEM P/N

Bedford
P/N

Description / Reference / Notes


   Please Note:

For Contractor Gun Models: 217-593, 220-955, 235-990, 243-282, 820-165, 824-950

See Reference for: "Contractor Spray Gun"

For Contractor FTx Gun Models: 238-350, 239-045, 239-516, 243-285, 243-374,

243-375, 824-004

See Reference for: "Contractor FTx Spray Gun"

For Contractor ST Gun Model: 238-352

See Reference for: "Contractor ST Spray Gun"

For SG3 Gun Models: 243-238, 243-382

See Reference for: "SG3 Spray Gun"

For Contractor II Gun Models: 246-220, 246-221, 246-222, 246-224, 246-225,

246-434, 246-538, 824-987

See Reference for: "Contractor II Spray Guns"

For Contractor FTx-E Gun Model: 239-516

See Reference for: "Contractor FTx-E Spray Gun"



Repair Kits

For Contractor FTx-II Gun Models: 246-230, 246-231, 246-232, 246-233, 246-234,

246-235, 246-435, 246-539, 246-540

287-031

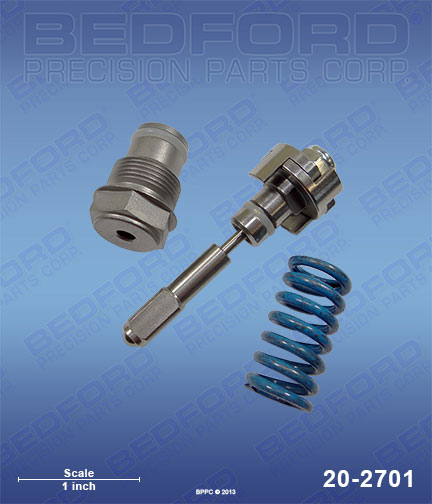

20-2701Bedford Precision 20-2701 Replaces Graco 287-031 / 287031

Repair Kit - includes: needle, diffuser, spring

Miscellaneous Spray Gun Components

117-602

- - -

Screw, trigger

15B-549

- - -

Nut, end

15B-569

- - -

Housing

15B-579

- - -

Trigger Guard

15B-581

- - -

Spring, rear housing

15B-584

- - -

Handle

15B-826

- - -

Handle, model 246-233 only

15B-903

- - -

Sleeve, handle, swivel

15D-002

- - -

Compression Spring, needle

179-733

8-3104

Gasket, handle

257-129

14-3225Bedford Precision 14-3225 Replaces Graco 257-129 / 257129

Filter, 30 mesh, gray, coarse

287-032

14-2664Bedford Precision 14-2664 Replaces Graco 287-032 / 287032

Filter, 60 mesh, black, medium

287-033

14-2665Bedford Precision 14-2665 Replaces Graco 287-033 / 287033

Filter, 100 mesh, blue, fine

287-034

14-2648Bedford Precision 14-2648 Replaces Graco 287-034 / 287034

Filters, 1-each: 60 mesh (black) & 100 mesh (blue)

287-099

- - -

Swivel, handle

287-102

- - -

Trigger, 2-finger

287-105

- - -

Trigger, 4-finger

287-106

- - -

Trigger, 4-finger, CE

Miscellaneous Parts & Accessories

214-701

13-792Bedford Precision 13-792 Replaces Graco 214-701 / 214701

3/16" Whip Hose, 1/4 NPT(m) x 1/4" NPS(f), 3000 PSI

Graco Instruction Manuals

309-639 E

Contractor II and FTx II Spray Guns


Click Pictures to Enlarge
= = = = = = = = = = = = = = = =

Bedford 20-2701 replaces Graco 287-031 / Graco 287031 Repair Kit - includes: needle, diffuser, spring for Graco Contractor FTx-II Spray Gun Bedford 14-3225 replaces Graco 257-129 / Graco 257129 Filter, 30 mesh, gray, coarse for Graco Contractor FTx-II Spray Gun Bedford 14-2664 replaces Graco 287-032 / Graco 287032 Filter, 60 mesh, black, medium for Graco Contractor FTx-II Spray Gun Bedford 14-2665 replaces Graco 287-033 / Graco 287033 Filter, 100 mesh, blue, fine for Graco Contractor FTx-II Spray Gun Bedford 14-2648 replaces Graco 287-034 / Graco 287034 Filters, 1-each: 60 mesh (black) & 100 mesh (blue) for Graco Contractor FTx-II Spray Gun Bedford 13-792 replaces Graco 214-701 / Graco 214701 3/16" Whip Hose, 1/4 NPT(m) x 1/4" NPS(f), 3000 PSI for Graco Contractor FTx-II Spray Gun




Before ordering any repair parts or attempting any maintenance, carefully read all instructions and warnings
and verify part numbers required as specified in the OEM manuals that came with your particular unit.

This reference was generated on 01/02/2022.  Part numbers on this reference were last modified on 06/11/2018.
